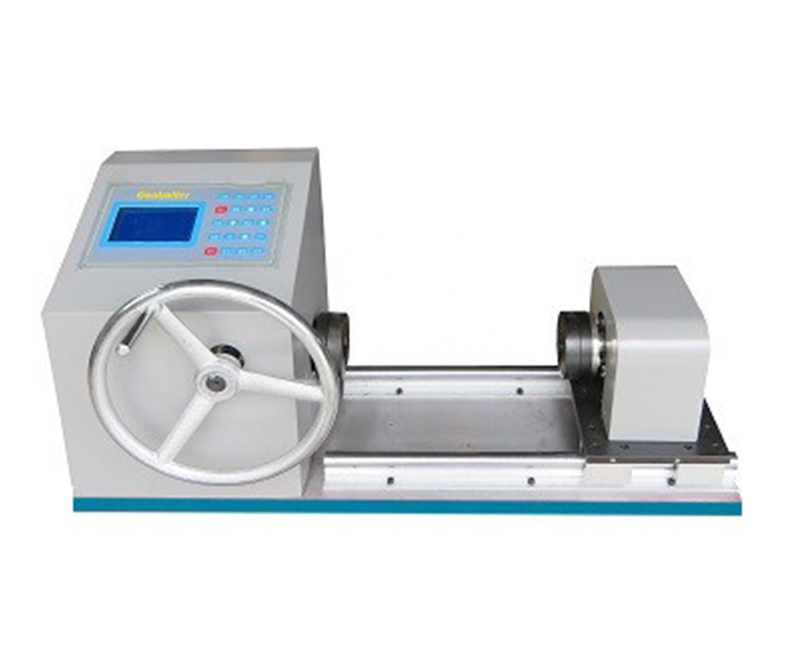

Model: TM1205/1210/1220
Application:
The test machine is doing reverse test of materials by reversing deformation in two directions. Manually load, test the torque and strength of the material, query and print the test results after the test.
Key Specification:
Model | TM1205 | TM1210 | TM1220 |
Maximum torque of test(Nm) | 50 | 100 | 200 |
Minimum of reading torque(Nm) | 0.1 | ||
Maximum of reading torsion angle | 9999.9° | ||
Minimum of reading torsion angle | 0. 1° | ||
Relative error of torque | ≤±1.0% ; | ||
Repetitive relative error of torque | ≤±1.0% | ||
Diameter of sample(mm) | Ø10 | ||
Maximum test space of axis(mm) | 260 | ||
Voltage | 1P~220V± 10% | ||
