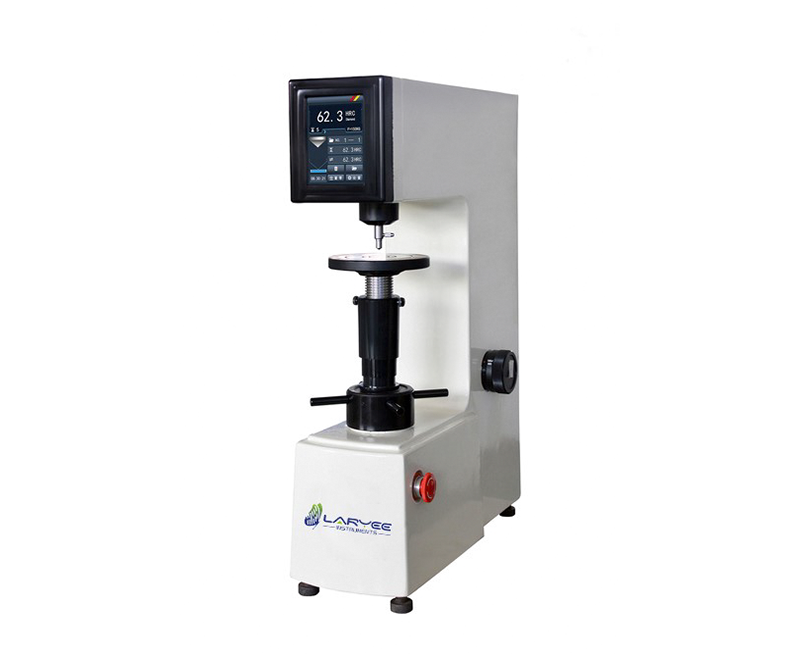

Digital Plastics Rockwell Hardness Tester

Model: XHRS-150

Introduction

XHRS-150 Digital plastics Rockwell hardness tester is equipped with a newly-designed large displaying screen with good reliability, excellent operation and easy watching, thus it is a high-tech product combining the mechanic and electric features. It can show and set the present scale, test force, test indenter, dwell time and hardness conversion; the main function is as follows: Selection of all the plastics Rockwell scales; Conversion scales of different kinds of hardness; Test results can be saved and printed out, automatic calculation of maximum, minimum and average value; With RS232 interface for connecting to the computer.

Inquire Now Next Product

Application range:

Suitable for hard plastics, hard rubbers, aluminum, tin, copper, soft steel, synthetic resins and fricative materials etc.

Execute Standard：ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2

Specification

Description	Technical parameters
Initial Test Force	10kgf (98.07N)
Total Test Force	60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter	Ф3.175mmBall Indenter, Ф6.35mmBall Indenter, Ф12.7mmBall Indenter
Loading Method	Automatic (Loading/Dwell/Unloading)
Hardness Reading	LCD Screen Display
Test Scale	HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV
Conversion Scale	HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Data Output	Built-in Printer,RS232 Interface
Hardness Resolution	0.1HR
Max. Height of Specimen	185mm
Throat	165mm
Power Supply	AC220V,50Hz
Dwell time	0-60s
Dimension	520x215x700mm,Packing Dimension:650x370x950mm
Weight	Net Weight:78kg,Gross Weight:100kg

Packing list

Name	Qty	Name	Qty
Instrument Main Body	1 set	Ф3.175mmBall Indenter	1 pc
Ф6.35mmBall Indenter	1 pc	Ф12.7mmBall Indenter	1 pc
Middle Plane Test Table	1 pc	Large Plane Test Table	1 pc
V-shaped Test Table	1 pc	Hardness Block 75~85 HREW	1 pc
Hardness Block 110~120 HRL	1 pc	Hardness Block 100~110 HRM	1 pc
Hardness Block 115~125 HRR	1 pc	Weight A, B, C	3 pcs
Power Cable	1 pc	Fuse 2A	2 pcs
Level	1 pc	Horizontal Regulating Screw	4 pcs
Inner Hexagon Spanner	1 pc	Spanner	1 pc
Anti-dust Cover	1 pc	Usage Instruction Manual	1 copy
