CM-X Series Static Micromixers

Model: CM-X Series

Summary:

Compared with the traditional tank type dynamic stirring mixing and pipeline static mixer, the micro mixer has the advantages of large specific surface area, high mass and heat transfer efficiency, high safety, and small amplification effect. In the process of reaction amplification and optimization, the microchannel mixer has higher reproducibility, stability, and high efficiency. In the case of blocking conditions, due to the special sealing and packing design, compared with the traditional The pipeline static mixer is easier to clean the dirt and replace the mixed filler. As a special form of the microreactor, the micromixer can handle many processes that cannot be handled by other equipment in the continuous flow process.

Inquire Now Next Product

Specification:

CM-X Series Micromixers
Model	CM-X1	CM-X2	CM-X3

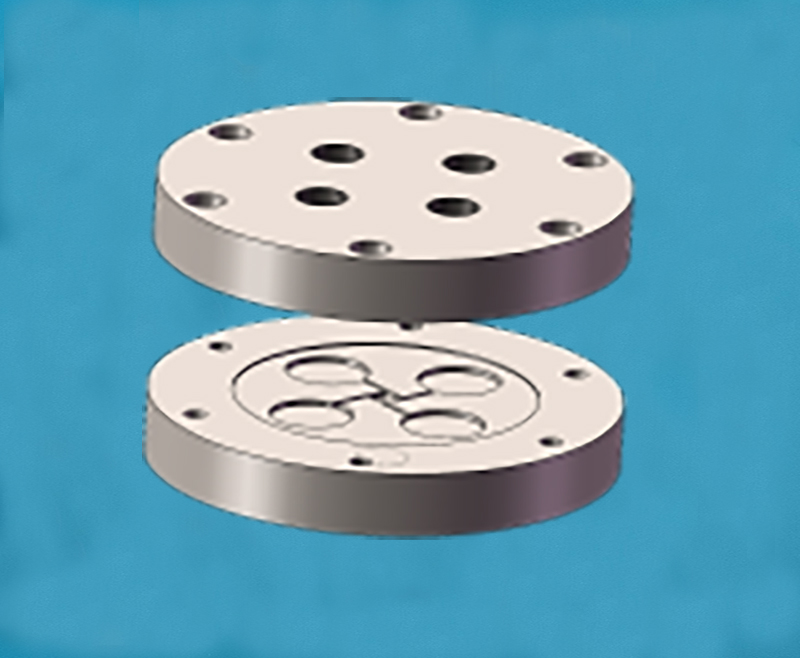

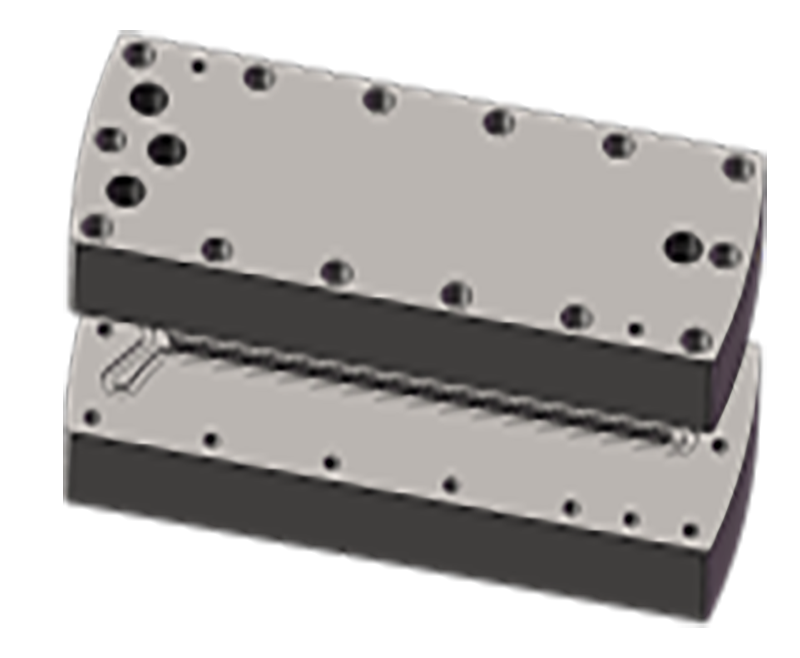

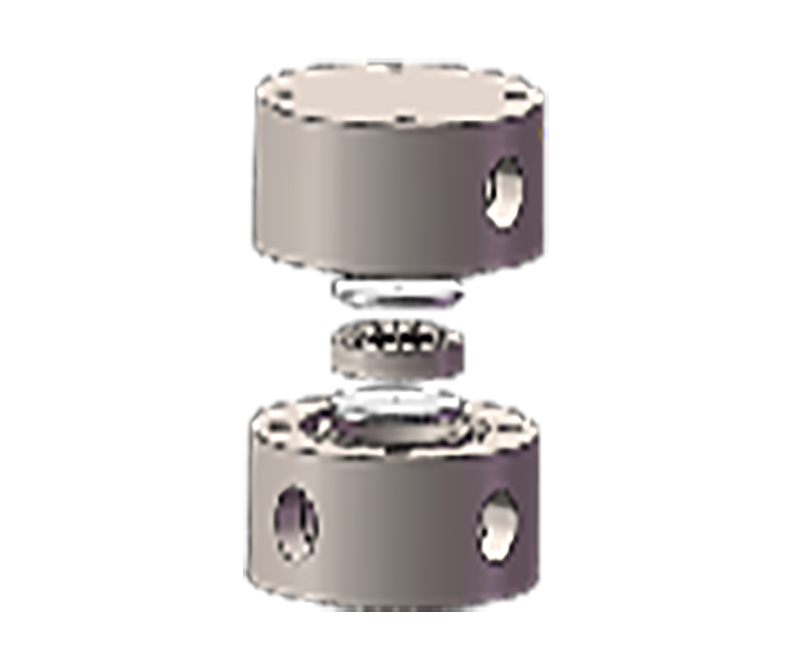

Principle	Vortex	Internal cross flow	Point jet
Type	Liquid-liquid-solid	Liquid-liquid-liquid	Gas-liquid-liquid
Import and export	Four in and one out	Three in and one out	Three in and one out
Application	Suitable for solids participating or solids forming processes	Suitable for processes with severe energy changes during the mixing process, and process intensification without solid particle generation is also possible	Suitable for gas participating or gas generating processes
Size	*ø9030mm**	70×170×35mm	*ø7570mm**
Material	316L SS、TA2 etc
Temperature Range	-25℃～280℃
Operating Pressure	0-15Mpa

Micromixer application fields:

Chemical reaction process with strong exothermic, emulsifier, liposome, pigment and dyestuff, cosmetics and other industries.
