Model: FIT1130
Application:

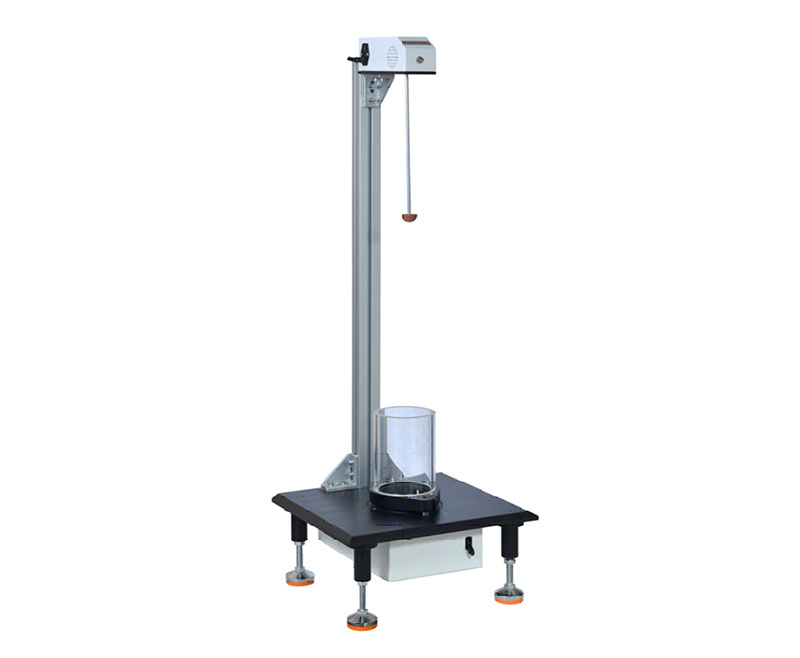

FIT1130 Falling dart impact testing machine applies to impact test for all kinds of plastic film and sheet. It confirms to ASTM 1709-04, ISO7765.1-1988"Plastic film and sheet- Determination of impact resistance by the free-falling dart method"standard. It has mathematical statistics, automatically calculates result and prevents the second time impact function. The machine conforms to the standard GB9639、ZBN72026。
Specification:
Incremental weights: Method A: min 5g; Method B: Min 15g
Radius of dart head: Method A: R19±0.5mm; Method B: R25±0.5mm
Impacting height: Method A: 660±10mm; Method B: 1500±10mm
Specimen clamp: Inside diameter Ø125±2 mm;
Outside diameter: Ø150±3 mm
Dart head quality: 50-2000g 5g/increment
The thickness of specimen: Less than 1.0mm
Max impact energy: 30J
Max impact height: 1500mm
Controller : PLC
Power: AC220V, 50Hz
Working environment: 10～35℃
Weights with machine: 5g (5 pcs), 15g (15 pcs), 30g (10 pcs), 45g (10 pcs),60g (10 pcs), 90g (15 pcs)
The machine weight: 150kgs
Our Knowledgeable Team is Here to Help
Our team is composed of experienced experts who are eager to help you find a solution that suits your business.
Related Products
Digital Izod and Charpy Impact Testing Machine
Model:
This machine adopts the technology of photoelectric encoder to examine angle, the whole digital measures the material absorption energy and impact intensity of the material in the course of breaking and possess intact energy and lose detection and revision function.
Charpy Impact Testing Machine(Computer Control)
Model:
The pendulum impact measurement and control system is based on the development and design of the microcontroller of the second generation ARMCortex-M4 core.

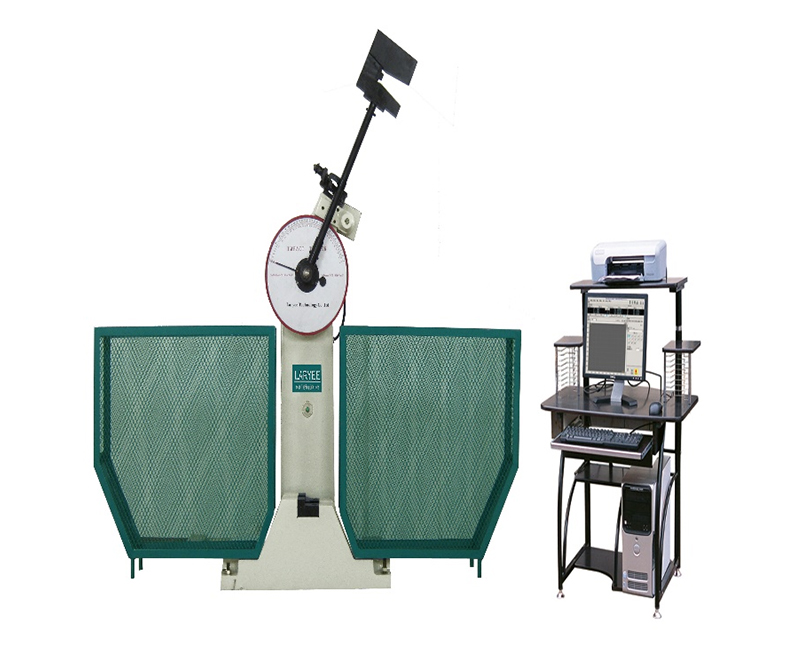

Computer control Charpy (simple-beam) impact testing machine
