Model: T004
Application

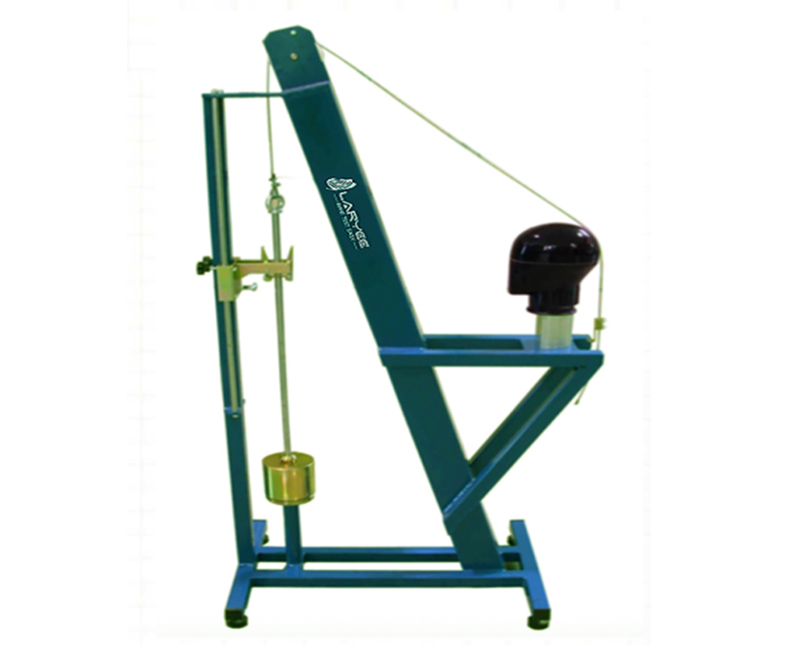

The device is used to test the wear stability of the helmet. It is composed of a frame, a heavy hammer, a guiding mechanism, steel wire and head form, conformity with GB811: 2010、QCVN 02:2008/BKHCN、ECE R22 and EN 13087: 2000 standards and related international standards. It is widely used in helmet manufacturing industry and safety supervision and testing department.
Parameter
1. Manual adjustment weight fall height;
2. Fall height adjustment range 0-70cm;
3. Manually release the weight;
Specification
Preload 3kg (error±0.1kg)
Droop weight 10kg (error±0.1kg)
Max drop height 70cm
Optional Accessories
Other models can be customized
（PU resin material）
Mounting plate for different head forms
