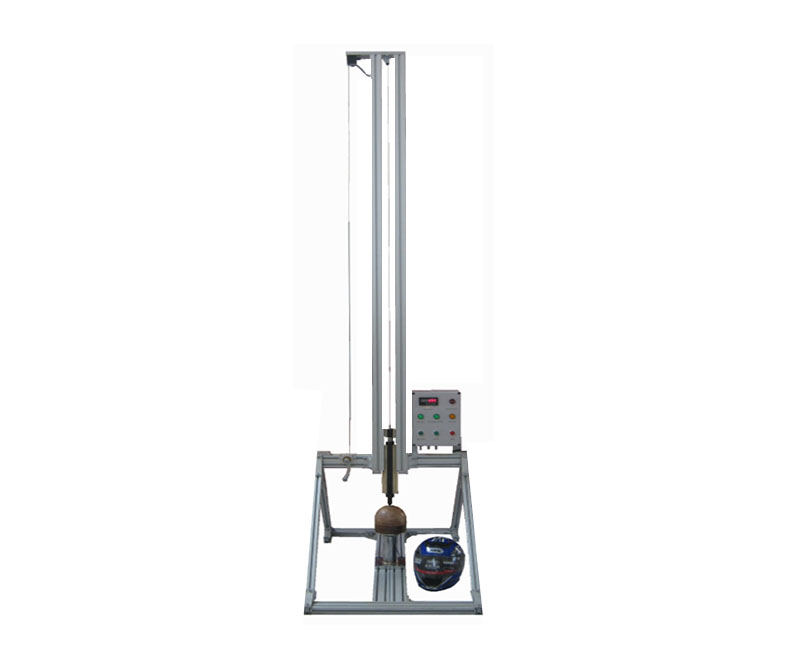

Helmet Pentration Testing Machine

Model: T001

Application

1. Equipped with sturdy and smooth slideway;

2. Frame is made of aluminum structure material and steel base;

3. Button controls the penetration cone release;

4. Manual control of the rise and fall of the penetrating cone;

5. The accuracy is highly displayed to 1mm;

6. There is a repairable lead plate on the head of the head;

7. Automatic sound and light alarm after penetration;

The equipment is used to test the anti penetration ability of the motorcycle helmet. This machine is in conformity with the GB 811: 2010、QCVN 02:2008/BKHCN、EN13087: 2000 and JIS T8133:2007standards, at same time other testing standard can be fulfill by changing some structure of the system

Inquire Now Next Product

Parameter

Falling height of penetrating cone: 2000mm± 5mm (zero automatically)

Penetrate cone weight: 3.0 kg ± 0.045kg

Penetrate cone shape: - Cone angle: 60° ± 0.50

- Cone radius: 0.5 mm ± 0.1 mm

- Hardness of cone: 45 HRC to 60 HRC

High display accuracy:1mm

Head form: - make of hard wood with lead metal in top of 30mm diameter.

- Diameter 165mm and height 133mm with wire inside.

Dimension: 800mmx800mmx3900mm

Weight: 100kg Power supply: Single phase 220V/110V, 50/60Hz

Standard Accessories and Parts

1. Structure Aluminum 4040 and 4080

2. Control cabinet.

3. Height Indicator

4. Soft steel wire

5. Pulley

6. Hand wheel

7. Wood head form

8. Penetrate carrier with electromagnetic

9. Penetrate head

10. Vertical penetrate stand

11. Tool for installation
